Race Graphic Installation Speed: Realistic Times & Quick Wins
A single race number decal takes 15–45 minutes; a partial wrap runs 1–3 hours; a full event-ready PWC wrap typically needs 4–8 hours or more. Three variables control where you land in those ranges: how well the surface is prepped, how complex the hull contours are, and how much installation experience you bring to the job. Ipdjetskigraphics kits are pre-trimmed and pre-laminated, which removes a significant chunk of layout time before you even pick up a squeegee.
Quick planning guide:
- Single decals / number kits: 15–45 minutes
- Partial wrap (nose, hood, or side panels): 1–3 hours
- Full event-ready wrap: 4–8+ hours (solo installer); 2–4 hours with a trained two-person crew
Pick your timeline band above, then run through the prep checklist below before install day. That single step is where most time is either saved or lost.
Key Takeaways
Preparation and crew size control race graphic installation speed more than any other variable, making a thorough pre-install checklist the single highest-return action before any job.
| Point | Details |
|---|---|
| Realistic timing bands | Single decals: 15–45 min; partial wrap: 1–3 hrs; full event-ready wrap: 4–8+ hrs solo. |
| Prep is the biggest lever | Cleaning, hardware removal, and test-fitting prevent rework that costs more time than the prep itself. |
| Two-person crews cut time | A trained two-person team can compress a full wrap from 8+ hours to 2–4 hours. |
| Temperature matters | Work between 60°F and 90°F; below 50°F adhesive stiffens and above 95°F repositioning becomes impractical. |
| Ipdjetskigraphics reduces layout time | Pre-trimmed, pre-laminated kits eliminate field cutting and the overlaminate step, speeding every install. |
Table of Contents
- What actually controls race graphic installation speed?
- Your pre-install prep checklist (with time estimates)
- Tools and equipment that speed up the process
- Step-by-step installation workflow
- Common mistakes that add hours to your install
- Realistic timelines for different job sizes
- When should you hire a professional instead of DIY?
- How professional shops compress install time
- How to remove race graphics cleanly
- An installer’s perspective on staying fast without cutting corners
- Ipdjetskigraphics makes event-ready installs faster and lower-risk
- Sources
What actually controls race graphic installation speed?
Race graphic setup time is not just about how fast you move. It is the product of at least five interacting variables, and understanding them lets you attack the biggest time sinks first.
Material type and adhesive style. Cast vinyl films conform to compound curves with minimal heat and less repositioning. Calendared vinyl is stiffer, so it fights contours and demands more squeegee passes. Die-cut decals from a precision-cut kit drop onto flat or gently curved panels in minutes. The adhesive matters too: air-release liners (sometimes called air-egress or micro-channel adhesives) let you squeegee out bubbles in one pass instead of three.
Surface complexity. PWC hulls are not flat. Chines, fuel port recesses, grab handles, and molded trim lines all require the vinyl to stretch or fold. Each transition adds 5–10 minutes per panel if you are working alone and have not pre-heated the film. A Sea-Doo RXP-X hull takes noticeably longer than a flat-sided trailer panel for exactly this reason.
Environmental conditions. Vinyl adhesive activates best between 60°F and 90°F. Below 50°F, the adhesive stiffens and the film becomes brittle; above 95°F in direct sun, the adhesive grabs too fast and repositioning becomes nearly impossible. Wind and dust are equally disruptive because airborne particles land on the adhesive before you can squeegee. Temperature control and safe heat ranges are consistently cited by manufacturer guides as a key factor in avoiding rework.
Crew size. A two-person team cuts critical-path time roughly in half on large panels. One person aligns and holds tension; the other squeegees. Solo installs on a full hull can easily add 90 minutes of repositioning and re-peeling that a second set of hands eliminates entirely.
Kit accuracy and fit. A pre-trimmed, model-specific kit from a manufacturer like Ipdjetskigraphics removes the layout and cutting stage. Generic sheets that require field trimming add 30–60 minutes to any job and introduce alignment risk.
Pro Tip: The single prep step that saves the most time is a thorough acetone wipe followed by a clean-water rinse. Adhesion failures discovered mid-install cost far more time than the 10 minutes the wipe takes.
Your pre-install prep checklist (with time estimates)
Preparation is where graphic wrap installation speed is won or lost. Skipping even one step here typically costs double the time later in rework.
- Visual inspection (5 min): Check the hull for cracks, oxidation, or wax residue. Wax is invisible and destroys adhesion.
- Full clean with approved cleaner (10–20 min per panel): Use isopropyl alcohol (70%+) or acetone on plastics. Thorough surface prep including acetone wipe and re-wipe is recommended by Rusk Racing’s installation guide to reduce defects and adhesion failures that cost hours later.
- Hardware removal and labeling (15–30 min): Pull grab handles, number plate screws, and any trim pieces. Label each fastener bag by location. Skipping this step forces you to work around hardware and almost always causes wrinkles.
- Test-fit all panels dry (10–15 min): Lay each piece against its surface without removing the liner. Confirm alignment marks match. This is where you catch a misprint or wrong-size piece before the adhesive is live.

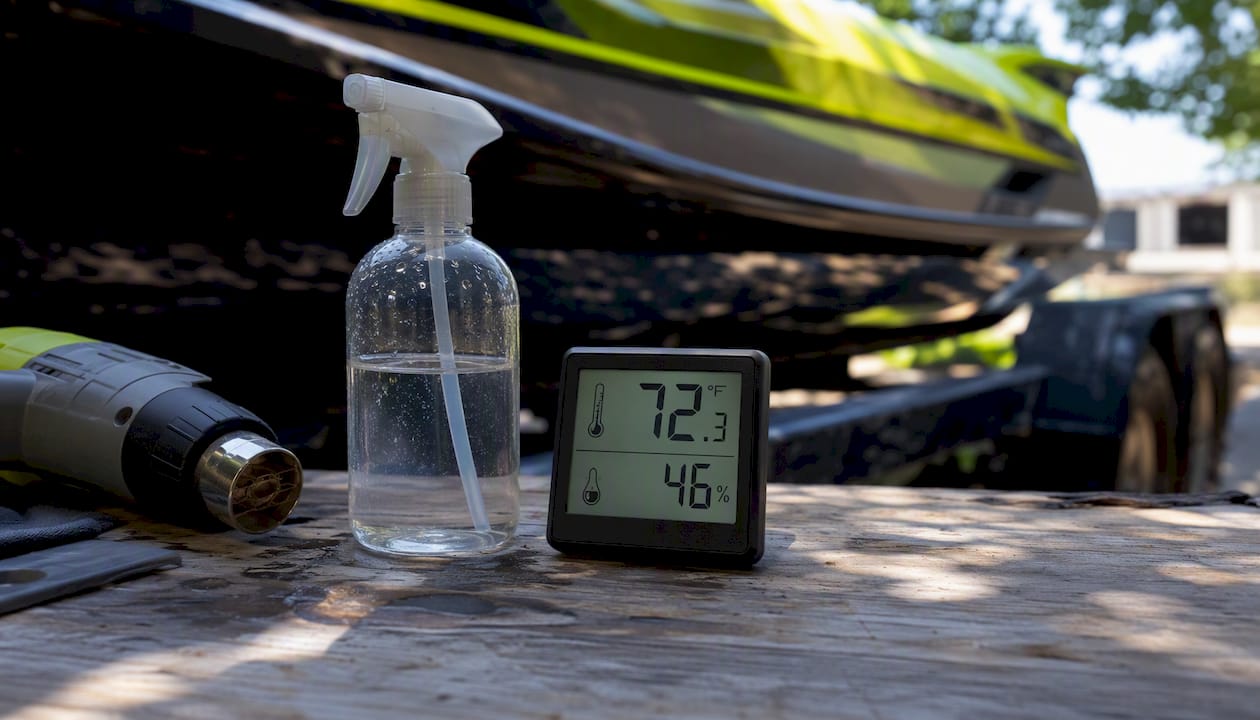

- Ambient temperature check (2–5 min): Confirm the workspace is between 60°F and 90°F. If you are working outdoors, shade the hull for at least 20 minutes before starting.
- Stage and label kit pieces in install order (5–10 min): Lay panels out on a clean surface in the sequence you will apply them. This allows parallel work if a second person is helping.
Pro Tip: Pre-stage your squeegees, heat gun, blades, and slip solution on a rolling cart or tray before you open the first panel. Hunting for tools mid-install is one of the most common causes of alignment drift.
The wet vs. dry method decision also happens here. Wet application (a few drops of dish soap in water as slip solution) gives you more repositioning time on large flat panels but extends dry time. Dry application is faster on small or pre-trimmed pieces where you have a clear alignment reference. Most PWC installs use dry application for smaller panels and wet for large hull-side pieces.
Tools and equipment that speed up the process
Having the right gear on hand before you start is not optional. Missing even one item mid-install forces you to stop, and stopping mid-panel is where bubbles and misalignment happen.
- Squeegees: Keep at least three types: a hard plastic squeegee for flat areas, a felt-edge squeegee for laminate surfaces, and a flexible rubber squeegee for curves. Each serves a different surface geometry.
- Heat gun (preferred over a hair dryer): A heat gun delivers consistent, controllable temperature. A hair dryer works in a pinch but lacks precision. ASD Racing’s installation notes specifically recommend controlled heat for conforming graphics to complex fairings and for finishing edges.
- Precision blades: Fresh blades only. A dull blade drags and tears laminate edges, which means re-cutting and potential panel replacement.
- Spray bottle with slip solution: Essential for wet-method installs. Mix a few drops of dish soap into clean water.
- Isopropyl alcohol (70%+) and lint-free cloths: For final surface wipe just before application.
- Seam tape and edge sealer: Stock a small roll for any seam that falls on a high-wear edge.
Air-release vinyl is the single material feature that saves the most time. The micro-channel adhesive lets air escape under the film as you squeegee, eliminating the need to lift and re-apply. Pre-laminated prints also save a step because you do not need to apply a separate overlaminate in the field.
Ipdjetskigraphics kits ship with a protective laminate already applied, which removes that field step entirely and keeps your install moving.
Step-by-step installation workflow
A clean, speed-focused race graphics installation process follows five stages. Rushing any one of them creates rework that costs more time than the shortcut saved.
- Layout and tack (10–20 min per panel): Position the panel dry, using the hull’s natural reference lines (seams, hardware holes, trim edges) as alignment guides. Apply a strip of masking tape as a hinge along one edge. This is your pivot point.
- Peel and tack-down (5–10 min): Fold the panel back on the hinge, peel the liner halfway, and lay the exposed adhesive onto the surface. Confirm alignment before committing the full panel.
- Squeegee from center out (10–15 min per panel): Work from the center toward edges in overlapping strokes. On air-release vinyl, one firm pass is usually enough. On standard adhesive, use a felt-edge squeegee and moderate pressure.
- Trim and detail edges (5–10 min per panel): Use a fresh blade to trim around hardware holes and panel edges. Cut screw holes from the back side to avoid tearing the laminate face.
- Post-heat (5–10 min per panel): Apply heat gun at 6–8 inches from the surface to activate the adhesive fully and help the film conform to any remaining contours. This step also sets edges so they do not lift.
When to use wet vs. dry: Use wet application for large hull-side panels where you need repositioning time. Use dry for small panels, number kits, and any piece with a clear alignment reference.
Two-person choreography: One person holds the panel in alignment and maintains tension; the other squeegees.
Pro Tip: Mark your alignment reference points with a thin strip of low-tack tape before peeling any liner. Removing the liner erases your visual references, and re-establishing them costs 10–15 minutes.
Common mistakes that add hours to your install
Most installation delays trace back to a short list of avoidable errors. Recognizing them before you start is the fastest way to protect your schedule.
- Rushing alignment: Committing a panel before confirming alignment forces a full re-peel. On cast vinyl, one careful re-peel is usually safe. On calendared vinyl, re-peeling often stretches the film and ruins the piece.
- Insufficient cleaning: Wax, silicone, or sunscreen residue is invisible but causes adhesion failure within days. The repair time far exceeds the 10–20 minutes a proper clean takes.
- Over-stretching vinyl: Forcing vinyl into a recess without heat causes memory shrink. The film contracts back toward its original shape within hours or days, lifting edges and requiring touch-up. Use heat to relax the film instead, as ASD Racing’s installation guidance specifically warns against over-stretching.
- Skipping test fits: Discovering a fitment issue after the adhesive is live costs a full panel replacement. A 10-minute dry test fit before opening the liner prevents this entirely.
- Not labeling panels: On a full kit with 8–12 pieces, unlabeled panels create a sorting puzzle mid-install. Staging and labeling in advance takes 5 minutes; sorting them out mid-install takes 20.

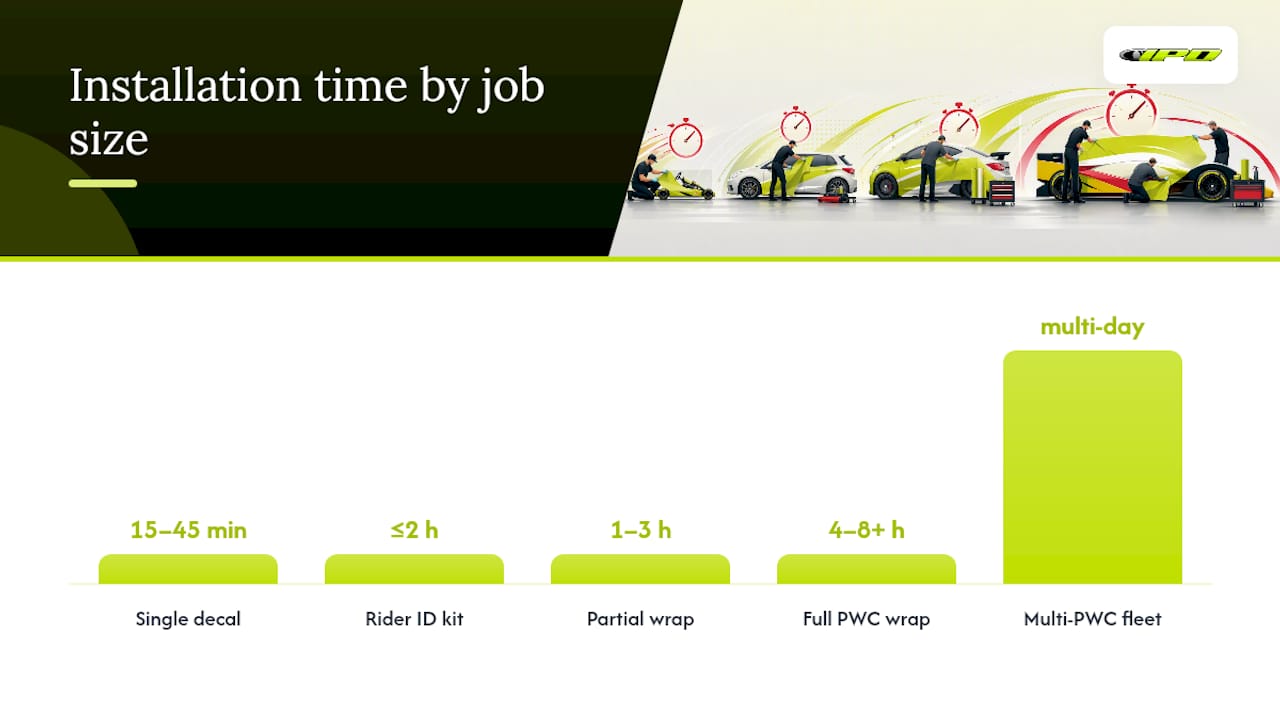

Realistic timelines for different job sizes
Planning your install day starts with honest time estimates. These ranges reflect typical elapsed time for a prepared installer working in a controlled environment.
| Job Size | Typical Elapsed Time | Key Caveat |
|---|---|---|
| Single number decal | typically under an hour | Cleaning needs can extend time |
| Rider ID / number kit (full set) | under two hours | Adding hardware removal time varies |
| Partial wrap (nose or side panels) | a few hours | Complex contours increase duration solo |
| Full event-ready PWC wrap | several hours | Crew size can notably reduce time |
| Multi-PWC fleet (3+ units) | multiple days | Scheduling and crew size affect timing |
SpeedPro East Bay reports that install times range from about one hour for small jobs to a full day or more for large color-change or fleet projects. For multi-unit fleet work, SpeedPro Windy City notes that standard scheduling windows often run 5–10 business days after materials are confirmed, with rush installs dependent on crew availability.
Professional shops operating with trained crews and production-grade equipment can compress these timelines significantly. Roland DGA’s documentation on RCR’s wrap operations shows that modern materials and two-person trained crews allow full race-vehicle wraps to be completed in a few hours, compared to the 8–10 hours previously required for paint-based work.
Cold temperatures, complex hardware, and solo installs are the three factors most likely to push you toward the upper end of any range.
When should you hire a professional instead of DIY?
The decision comes down to four questions. Answer them honestly before committing to a DIY install under a deadline.
- Do you have a hard event deadline within 48 hours? If yes, a professional with a trained crew is almost always faster overall, even accounting for drop-off and pickup time.
- Does the hull have significant compound curves or recessed hardware? Complex surfaces require experience and the right tools. A first-time installer on a complex hull will spend 2–3 times longer than an experienced one.
- Do you need a warranty on the install? Professional installers with certifications such as 3M Preferred or Avery Dennison certified status back their work. Certified installer programs reduce rework risk and support faster, warranty-backed installs.
- Are you installing on multiple PWCs for a team or rental fleet? Multi-unit installs benefit from crew coordination and parallel workflows that are impractical for a solo DIYer. Working directly with an installer rather than through intermediaries can also shorten scheduling timelines when speed is critical.
When DIY makes sense:
- Single number kits or small decal sets
- Flat or gently curved surfaces
- No hard deadline, with time to redo if needed
- You have installed graphics before and have the right tools
When to hire a pro:
- Full event-ready wraps with a race weekend deadline
- Multi-PWC fleet installs
- Complex hull geometry (RXP-X, SXR, or similar performance hulls)
- Warranty or sponsor presentation requirements
How professional shops compress install time
Speed in professional wrap shops is not about moving faster. It is the result of preparation, trained crews, and materials chosen specifically to reduce handling time.
Roland DGA’s documentation of RCR’s wrap workflow makes this clear: the shift from paint-based work to modern wrap materials and trained two-person crews reduced full vehicle wrap time from 8–10 hours to a few hours. That compression came from offseason crew training, standardized prep protocols, and material selection, not from rushing.
Professional wrap speed is the product of preparation and installer skill, not haste. Offseason training and standardized site prep reduce on-day rework more than any tool upgrade.
Manufacturer-certified installers using approved materials from programs like 3M Preferred or Avery Dennison certified reduce the probability of adhesion failures and edge lifts, which are the two most common sources of unplanned rework time. Certification also means the installer has practiced the specific techniques, including post-heat protocols and two-person choreography, that compress timelines without sacrificing quality.
Pro Tip: If you are training a second person to help, practice the two-person squeegee handoff on a scrap panel first. The alignment-hold and squeegee roles require coordination, and 15 minutes of practice before the real install saves far more than that in corrections.
How to remove race graphics cleanly
Removal done correctly protects the hull surface and makes the next install faster. Done wrong, it leaves adhesive residue that adds 30–60 minutes of cleanup to your next job.
Start with heat. Apply a heat gun at 6–8 inches from the surface, moving slowly across the panel until the vinyl softens. Warm vinyl peels cleanly; cold vinyl tears and leaves adhesive behind. Peel at a low angle (15–30 degrees) rather than pulling straight up, which reduces the chance of tearing.
For adhesive residue, apply isopropyl alcohol or a dedicated adhesive remover and let it dwell for 30–60 seconds before wiping. Avoid aggressive scraping on gelcoat or painted surfaces. On raw plastic panels, a plastic-safe adhesive remover is preferable to acetone, which can cloud some finishes.
After removal, inspect the surface for any lifted paint, stress marks, or residue before starting the next install. A clean removal surface is essentially a pre-cleaned install surface, which cuts your prep time on the next job.
An installer’s perspective on staying fast without cutting corners
The installers who finish fastest are not the ones who skip steps. They are the ones who have internalized the prep sequence so thoroughly that it takes no extra thought.
A few micro-habits separate a 4-hour full wrap from a 7-hour one. Mark your alignment references before you peel any liner, not after. Pre-heat a panel for 30–60 seconds with a heat gun before applying it to a compound curve; the film relaxes and conforms with far less squeegee pressure. Keep a fresh blade in your knife at all times, not just when the current one starts to drag.
Staging matters more than most installers admit. Laying out all panels in install order, labeled and face-up, before opening the first liner means you never stop to sort or search. On a full PWC kit, that staging step takes 10 minutes and routinely saves 30.
One habit worth adopting immediately: after each panel, do a 60-second edge check before moving to the next. Run your fingernail along every edge and around every hardware cutout. Catching a lifted edge right after application takes 2 minutes to fix. Catching it after the post-heat stage takes 20.
Ipdjetskigraphics makes event-ready installs faster and lower-risk
When your race weekend is two days away and you need graphics that fit perfectly the first time, kit accuracy is the variable that matters most. Ipdjetskigraphics pre-trims every kit to your specific PWC model, ships with the protective laminate already applied and offers competition-ready graphic designs built for Sea-Doo, Yamaha WaveRunner, Kawasaki Jet Ski, and every other major PWC brand.
For rental fleets or multi-PWC teams, Ipdjetskigraphics also offers coordinated team graphics that ship as matched sets, cutting your layout time across multiple units. Rush and event-ready orders are available; contact Ipdjetskigraphics directly to confirm current lead times and crew scheduling for your event date. Browse the full PWC graphics gallery to choose your design, then place your order with your hull model and color preference to get a kit that installs in hours, not days.
Sources
The following resources provide additional depth on installation methods, temperature guidance, and material specifications:
- The Many Stages of Vehicle Wrap Installation | Roland DGA
- Graphics kits / Installation tips | ASD Racing
- Rusk Racing Custom Motocross Graphics Installation Instruction Page
- Graphic Installation in SF Bay Area | SpeedPro East Bay
Always follow the material manufacturer’s temperature and post-heat guidance for your specific vinyl product. Recommended ranges vary by film type and adhesive formulation.
