Freestyle PWC Graphics Design Tips for Riders

For freestyle PWC riders, the winning combination is marine-grade cast vinyl with a UV-stable protective laminate, applied wet on large hull panels and dry on small decals and rider ID. Start with Ipdjetskigraphics’ model-specific templates, prep the hull with isopropyl alcohol (no wax, ever), and you’ll avoid the two most common failures: edge lifts and color fade. The tradeoff worth knowing upfront: ultra-fine detail looks sharp on a trailer but disappears at speed and shows every scuff. Larger, high-contrast elements hold up far better in freestyle conditions where abrasion and impact are routine.

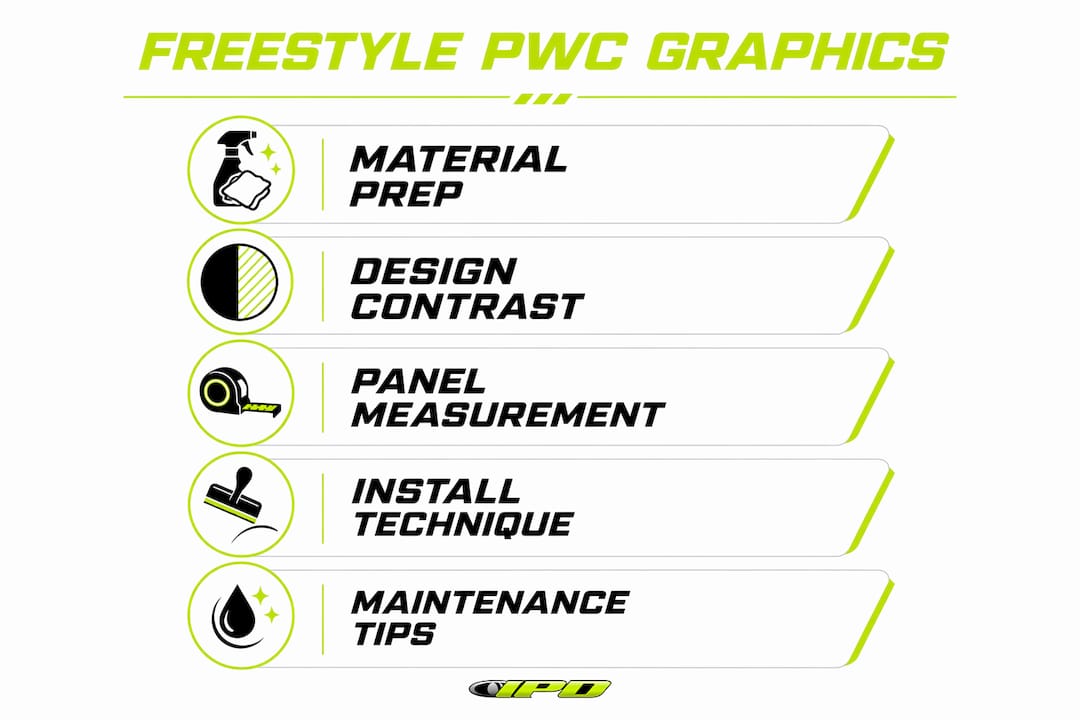

Three priorities drive every decision in freestyle graphic design:

Visibility for judges and safety: high-contrast colors, reflective outlines on rider ID numbers, and placement on panels that stay visible during tricks
Abrasion resistance on hull zones that contact ramps, grips, and dock edges: thicker laminate and darker base colors in those areas
Flexible seams at handlepole junctions and seat transitions: plan seam lines away from high-flex zones so graphics don’t crack or peel under repeated movement

What materials and tools do you need for a freestyle install?
Design rules that matter for freestyle PWC graphics
How do you prepare the hull surface before applying graphics?
How do you measure panels and verify template fit?
Step-by-step application technique for large panels and curves
How do you finish, maintain, and repair freestyle graphics?
What does a freestyle graphics install actually cost?
Publisher templates, pro tips, and design resources from Ipdjetskigraphics
Key Takeaways
What most freestyle riders get wrong about graphics installs
Get ride-ready graphics built for freestyle performance

What materials and tools do you need for a freestyle install?

Vinyl types: cast vs. calendared

Marine-grade cast vinyl is the right call for freestyle panels. It conforms to compound curves without memory shrinkage, which matters on hull shapes that curve in two directions at once. Calendared vinyl is thicker and stiffer, fine for flat or mildly curved panels, but it tends to lift at edges on contoured surfaces over time. For sponsons, bow panels, and saddle areas, cast vinyl is worth the extra cost.

Laminate selection

A protective overlaminate adds UV resistance and abrasion protection that printed vinyl alone cannot provide. For freestyle use, a 4–7 mil matte or gloss UV-stable laminate is the standard range. Matte finishes hide minor surface scratches better; gloss finishes pop color in competition settings. Salt and sun accelerate ink degradation, so skipping the laminate on a saltwater-used craft is a short path to faded graphics within a single season.

Cleaning and adhesive prep

Remove all wax and silicone before application. Wax is the single biggest cause of adhesion failure, and it’s invisible once dry. Use a dedicated wax remover or a denatured alcohol wipe, followed by a 70% isopropyl alcohol final pass. Avoid oil-based cleaners entirely; they leave a residue that prevents the adhesive from bonding.

Essential install kit

Squeegee set with a soft felt edge (hard plastic edges scratch laminate)
Heat gun or cordless heat tool (propane-free for safety near vinyl)
Spray bottle with a soap/water mix or Rapid Tac application fluid
Microfiber cloths for final surface wipe
Precision knife or razor for trimming and relief cuts
Masking tape for alignment registration
Magnets or clamps for holding templates flat during tracing

Pro Tip: Pack a compact post-install kit for your first on-water test: a small squeegee, a few inches of edge sealer, and a heat gun. Minor edge lifts caught within 24 hours reseat cleanly; left for a week in sun and water, they don’t.

Design rules that matter for freestyle PWC graphics

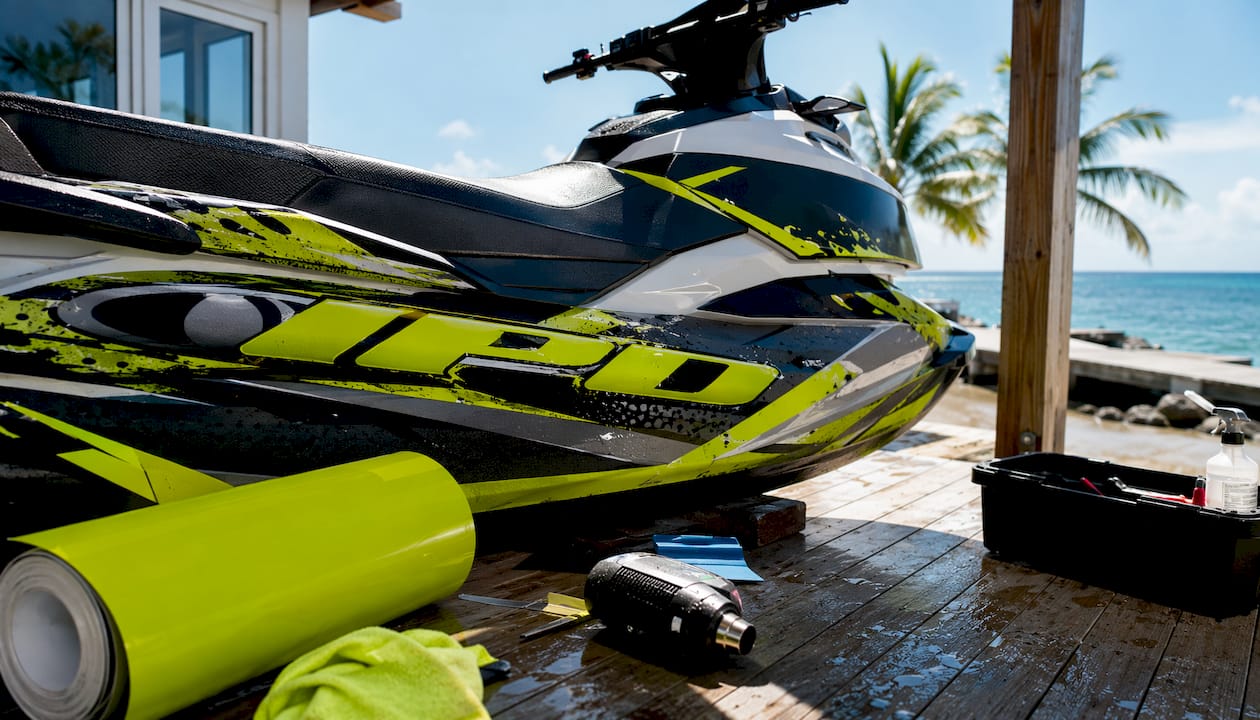

Visibility and contrast

Color contrast is functional, not just aesthetic, for freestyle riders. Judges read numbers from distance and angle; safety crews identify riders by hull markings. Use colors with strong luminance contrast against your hull base, and add reflective outlines to rider ID numbers for low-light visibility. Neon yellow-green, white, and high-visibility orange read well at competition distances. Avoid color combinations that blend at speed, like dark blue on black or red on dark gray.

For competitive rider ID placement, mount numbers on planar areas slightly forward of the rider’s hip line. That position stays visible during tricks and keeps numbers clear of the rider’s body during standing maneuvers.

Scale and hull distortion

Hull curvature changes how graphics look once installed. A logo that appears proportional in flat artwork can look stretched or compressed on a curved sponson. Design at a scale that accounts for the panel’s curvature, and avoid tight text or fine line work on high-curvature zones like the bow and tunnel edges. Test your layout by printing a paper mock-up and taping it to the actual panel before finalizing art.

Freestyle sketching before committing to final art yields more viable design options and reduces costly reprints. Doing three quick layout variants and mocking them on templates takes less time than reprinting a misfit panel.

Edge, seam, and modification planning

Place seams on flat or low-flex zones, never at seat seams or handlepole junctions
Leave a minimum 1/4-inch overlap at all panel edges for tuck-and-seal
Build margin zones around mounting points, racks, and aftermarket accessories so graphics survive upgrades without full removal
Keep footwell and handhold cutouts clean with precise trim lines

Pro Tip: Build contrast zones in your design where scuffs are most likely, like the lower hull and sponson edges. A bold pattern or texture in those areas makes abrasion blend into the design rather than stand out against a solid color.

Freestyle-focused graphics should trade ultra-fine detail for larger, higher-contrast elements in tactical wear zones. Scuffs and abrasion become far less visible when the design already has texture and pattern in those spots.

How do you prepare the hull surface before applying graphics?

Proper surface prep is where most DIY installs succeed or fail. Follow these steps in order:

Remove old graphics. Apply heat from a heat gun to soften the adhesive, working in small sections. Use a plastic scraper (never metal on gelcoat) to lift the graphic. Follow with an adhesive remover or citrus-based solvent to dissolve residue. Test any solvent on a hidden area first to confirm it won’t cloud or stain the gelcoat.
Wash the hull. Use a mild detergent and water to remove dirt, salt, and loose contamination. Rinse thoroughly and let the surface dry completely.
Degrease and remove wax. Wipe the entire panel with a dedicated wax remover, then follow with a 70% isopropyl alcohol wipe. This step is non-negotiable. Any wax or silicone left on the surface will cause adhesion failure.
Final decontamination. Do a final isopropyl wipe with a clean microfiber cloth, using straight strokes (not circular). Let the surface off-gas for 5–10 minutes before applying vinyl.
Check environmental conditions. Ideal installation temperature is 65°F–80°F with low humidity. Cold adhesive (below 50°F) loses tack and won’t conform; heat above 90°F makes the vinyl too soft to control during positioning. Humidity above 70% slows adhesive cure and can trap moisture under the film.

Work on a stable stand or trailer with the hull at a comfortable working height. Wear nitrile gloves throughout to keep skin oils off the prepared surface, and use eye protection when working with solvents.

How do you measure panels and verify template fit?

Getting measurements right before printing saves money and time. A misfit panel on a curved hull is difficult to correct after the fact.

Panels to measure

Bow and nose cone
Cowling (top and sides)
Center tunnel and keel strip
Sponsons (left and right)
Handlepole and pole pad
Seat side panels and rear tray

Take baseline reference points from fixed features: intake grate edges, pole mount holes, and hull seam lines. These don’t move and give you repeatable reference marks across multiple measurements.

Template methods

Ipdjetskigraphics provides model-specific race templates and downloadable files that cover major PWC brands including Sea-Doo, Yamaha WaveRunner, Kawasaki Jet Ski, and ProWatercraft. Publisher templates reduce distortion risk on complex panels because they’re built from actual model geometry rather than estimated measurements.

For panels not covered by a publisher template, use a full-size paper template: tape kraft paper to the panel, trace the edges, mark reference points, and cut out the shape. Scan or photograph the paper template flat for digital use.

Verification before printing

Print a draft version on plain paper or low-cost film.
Apply with removable application tape or low-tack film.
Photograph the dry-fit from riding-angle viewpoints (standing position, side view, and from the water line).
Check number placement, seam positions, and edge overlaps before approving final print.

Leave a minimum 1/2-inch trim margin on all edges. Tuck-and-seal on contoured edges needs material to work with; cutting too close to the edge leaves nothing to fold under.

Step-by-step application technique for large panels and curves

The core install sequence

Clean the panel one final time with isopropyl alcohol and let it dry.
Remove the backing paper from the top 2–3 inches of the graphic only.
Align the exposed top edge to your registration marks and tack it lightly into place.
Hold the remaining graphic away from the surface at a 45-degree angle.
Slowly peel the liner back while squeegeeing from the center outward in overlapping strokes, working downward in sections.
Use firm, even squeegee pressure; avoid hard edges that can scratch the laminate.

Wet vs. dry install

Wet install works best for large, wrap-style panels because the soap/water mix gives you time to reposition before the adhesive sets. Spray the panel lightly, apply the graphic, squeegee out the fluid from center to edges, and allow 24 hours for the adhesive to cure before water exposure. Dry install is better for small decals and rider ID numbers where precise placement matters more than repositionability.

Temperature affects both methods. In cold conditions, warm the panel slightly with a heat gun before applying; in hot conditions, work in shade and move quickly.

Heat-forming for compound curves

Work in 1–2-inch zones and keep the heat tool moving constantly. Overheat causes the adhesive to lose bonding strength and can cloud the laminate. Apply heat until the vinyl becomes pliable, stretch gently into the curve, and cool to room temperature before making final squeegee passes. For tight inside curves, use small relief cuts to relieve tension rather than forcing the material.

When heat-forming vinyl for compound curves, work in 1–2-inch zones and keep the heat tool moving. Overheat causes the adhesive to lose bonding strength and can cloud the laminate. Always cool to room temperature before final squeegee passes.

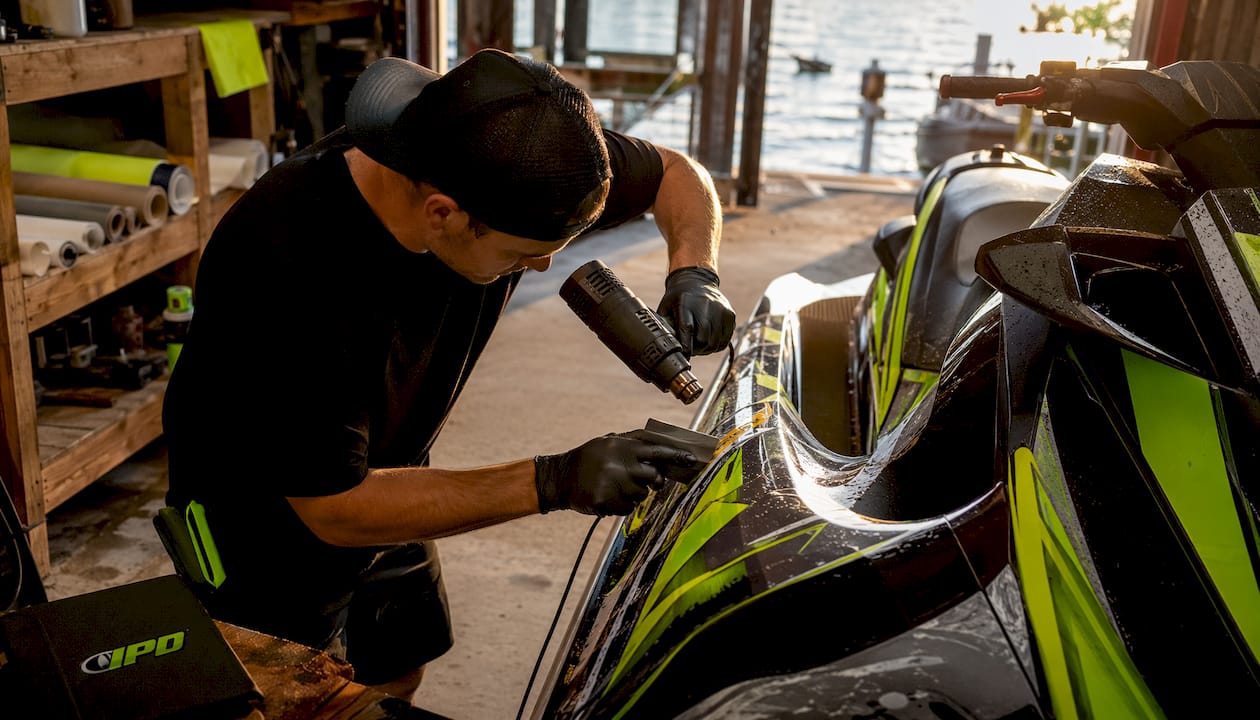

Steering and seam technique

Pull and steer the vinyl into position rather than pressing it flat all at once. This technique, common in forum install practice, prevents wrinkles from locking in before you’ve aligned the full panel. At saddle and handlepole transitions, lay seams on the flattest available surface and overlap by at least 1/4 inch. Use edge sealer or a compatible solvent at fuel door penetrations and fastener holes to prevent moisture wicking under the edge.

Pro Tip: Before committing to a full-panel install, apply a 4×4-inch test patch in a low-visibility area and leave it for 48 hours. Check adhesion, edge curl, and laminate clarity. If the test patch holds clean, the full panel will too.

Common problems and fixes:

Fish-eye bubbles: pierce with a fine pin at an angle, press flat, and resqueegee
Edge lifts: reheat gently, press back down, and apply edge sealer immediately
Ink-read distortion after conforming: usually caused by over-stretching; relief cuts and slower heat application prevent this on the next panel

For heat-forming and seam work specifically, short video walk-throughs are worth watching before your first install. Ipdjetskigraphics’ graphics gallery shows real installed examples with visible seam and overlap approaches across multiple models.

How do you finish, maintain, and repair freestyle graphics?

Curing and finishing

After installation, wait at least 24 hours before water exposure and 48–72 hours before high-load maneuvers like towing or ramp work. Signs of full adhesive bond: edges lie flat without pressure, no visible moisture under the film, and the graphic feels firmly integrated with the surface. Do a final edge-roller pass on all seams and tuck edges, and apply edge sealer at any penetration points.

Maintenance checklist

Wash with a pH-neutral, non-abrasive cleaner after every saltwater session
Avoid pressure washing directly at graphic edges; the force lifts seams over time
Inspect edges and seams monthly during active riding season
Re-laminate or touch up areas showing UV yellowing or delamination before they spread

Durability factors that accelerate degradation include UV exposure, salt water, abrasion from ramps and grips, and improper cleaning products. Solvent-based cleaners and abrasive pads are the fastest way to destroy a laminate finish.

Expected lifespan and repairs

In freestyle conditions with regular UV and abrasion exposure, a quality laminated graphic typically lasts 2–4 years before showing significant wear. Full wraps offer better long-term abrasion protection than partial wraps, though partial wraps are faster to replace on high-wear panels.

Quick repair steps:

Small lifts: apply heat to resoften the adhesive, press firmly, hold for 30 seconds, and seal the edge
Small abrasion patches: clean the area, apply a matching patch cut from spare material, squeegee flat, and seal edges
Panel replacement: if damage covers more than 30% of a panel, full panel replacement is cleaner and more durable than patching

What does a freestyle graphics install actually cost?

Typical DIY material costs

Marine cast vinyl (full wrap): $80–$180 depending on hull size and brand
Overlaminate film: $30–$60 for a full wrap quantity
Adhesive removers and cleaners: $15–$25
Install tools (squeegee set, heat gun, spray bottle, knife): $40–$80 for a starter kit

A full DIY wrap typically runs $165–$345 in materials before labor. Partial wraps and decal-only kits cost considerably less.

Labor time estimates

Experienced solo installer: 3–5 hours for a full wrap on a standard freestyle hull
Two-person team: 2–3 hours, with one person holding and one squeegeeing
Shop install: most shops quote 4–8 hours of labor for a full wrap, with turnaround of 1–3 business days

When a pro install is worth it

Complex multi-panel wraps with compound curves, race-legal numbering that must meet specific placement standards, or installations covered by a warranty are strong cases for a shop install. The cost difference is real, but so is the risk of a misaligned race number or a lifted seam on a competition hull.

Item	DIY Estimate	Shop Estimate
Full wrap materials	$165–$345	Included in labor quote
Labor (full wrap)	Your time (3–5 hrs)	—
Partial wrap materials	—	Included in labor quote
Install tools (one-time)	$40–$80	Not needed

Time-saver tips:

Order pre-measured, pre-trimmed panels from Ipdjetskigraphics to cut shop hours
Use publisher templates to eliminate back-and-forth on fit corrections
Ship graphics to the shop directly with a printed install reference sheet

Publisher templates, pro tips, and design resources from Ipdjetskigraphics

Ipdjetskigraphics maintains model-specific templates and a race-graphic template resource covering major PWC brands. These templates reduce fit issues and speed installs by starting from actual model geometry rather than rider-estimated measurements.

What the template library covers

Sea-Doo, Yamaha WaveRunner, Kawasaki Jet Ski, Polaris, Hydrospace, Kommander, Rickter, and ProWatercraft panels
Full wrap and partial wrap layouts with seam and overlap guides
Race-template files with rider ID and number placement zones pre-marked

Design checklist for print-ready files

Set color mode to CMYK before submitting art
Include a minimum 1/8-inch bleed on all edges
Resolution at 150 dpi minimum at print size (300 dpi preferred for detail areas)
Convert all fonts to outlines to prevent substitution errors
Flatten transparency layers before export

How Ipdjetskigraphics matches laminates to print profiles

Ipdjetskigraphics recommends matching the laminate spec to the ink profile used in printing. A matte laminate over a high-saturation print profile can shift perceived color; gloss laminates tend to preserve color accuracy better. When ordering a custom rider ID or number kit, specify the laminate finish at the time of order so the print profile is adjusted accordingly.

Pro Tip: Use a consistent file naming convention when submitting art: ModelYear_Brand_PanelName_Version (e.g., 2025_SeaDoo_Cowling_v2). This speeds prepress review and reduces back-and-forth on which file is current.

Additional resources

Jet ski wrap design inspiration for layout and color ideas before starting your art
Graphic design styles guide for current style treatments and competitive looks
Competitive wrap trends for rider-focused design elements and number placement examples

Key Takeaways

Successful freestyle PWC graphics come down to marine-grade cast vinyl with UV-stable laminate, thorough wax-free surface prep, and seam placement away from high-flex zones.

Point	Details
Material choice	Use marine-grade cast vinyl with a 4–7 mil UV-stable laminate for abrasion and fade resistance.
Surface prep	Remove all wax and silicone, then do a final isopropyl alcohol wipe before any vinyl touches the hull.
Install method	Use wet install for large panels, dry install for small decals and rider ID numbers.
Seam and design planning	Place seams on flat zones, build contrast patterns in high-wear areas, and leave margin for aftermarket mods.
Ipdjetskigraphics templates	Use Ipdjetskigraphics’ model-specific templates and pre-trimmed panels to reduce fit errors and cut install time.

What most freestyle riders get wrong about graphics installs

The mistake I see repeated most often is treating the graphics install as the last step, something to rush through after the real work is done. Freestyle riders spend months dialing in their hull setup, their pole height, their trim tabs, and then slap graphics on in an afternoon without proper prep. The result is edge lifts within weeks and faded panels by mid-season.

The second underestimated factor is seam placement. Most riders put seams wherever the panel edge happens to fall. On a freestyle hull that flexes constantly at the saddle and handlepole junction, that’s a guarantee of cracking. Moving a seam two inches to a flatter zone takes five minutes in the design phase and adds a full season of life to the install.

Ipdjetskigraphics has been supporting freestyle and competitive PWC riders for over two decades, shipping to all major brands and markets worldwide. The model-specific templates, laminate matching, and rider ID kits exist precisely because generic wrap approaches don’t hold up to freestyle conditions. The downloadable templates and design resources referenced throughout this guide are the same ones used by competitive riders who need graphics that perform, not just look good on the trailer.

Get ride-ready graphics built for freestyle performance

Riders who want graphics that hold up through a full freestyle season, not just look sharp on launch day, need materials and fitment built for the job. Ipdjetskigraphics offers custom graphics kits, rider ID and number kits, handlepole graphics, and protective laminates for every major PWC brand, with 18 color options and fully custom design requests accepted.

The partial wrap vs. full wrap decision is a good starting point if you’re not sure which coverage level fits your riding style and budget. For riders ready to order, Ipdjetskigraphics ships worldwide from Texas with model-specific templates included, so your install starts with a confirmed fit rather than a guess. Browse the full range of ProWatercraft graphics options or request a custom design directly to get your kit moving.
