How UV Affects PWC Graphics: Protect Your Ride

UV radiation is the leading cause of graphic deterioration on personal watercraft, breaking down vinyl polymers and fading printed inks faster than water, salt, or physical wear alone. Understanding how UV affects PWC graphics gives you a real advantage in choosing materials, planning maintenance, and getting the most life out of your investment. Whether your Sea-Doo, Yamaha WaveRunner, or Kawasaki Jet Ski sits on a Texas lake or a coastal saltwater bay, the sun is working against your graphics every single hour on the water.

How UV light affects PWC graphics at the material level

UV radiation causes photochemical degradation in vinyl graphics, a process where high-energy light breaks apart the molecular chains that hold the material together. This is not just surface fading. The damage goes structural.

When UV photons hit a vinyl film, they trigger two competing reactions: polymer chain scission and cross-linking. Chain scission shortens the polymer molecules, making the film brittle. Cross-linking locks chains together in ways they were not designed for, causing the surface to stiffen and crack. The result is yellowing, surface crazing, and embrittlement that weaken the graphic overlay well beyond what you can see with the naked eye.

Inks take a separate but equally serious hit. Organic pigments, including the magenta and cyan used in most digitally printed graphics, absorb UV energy and oxidize. This photooxidation breaks the chromophore bonds that give pigments their color. The result is that organic pigments fade unevenly, with some colors shifting before others. You will notice your graphic looks “off” before it looks faded. Blues may hold while reds shift toward orange. That uneven color shift is a normal aging pattern, not a defect.

Here is a breakdown of the specific failure modes UV causes:

• Fading and color shift: Organic pigments like magenta and cyan degrade faster than inorganic ones, causing visible color imbalance before full fade.
• Yellowing: UV oxidizes the vinyl binder and any clear coatings, turning white or light areas yellow.

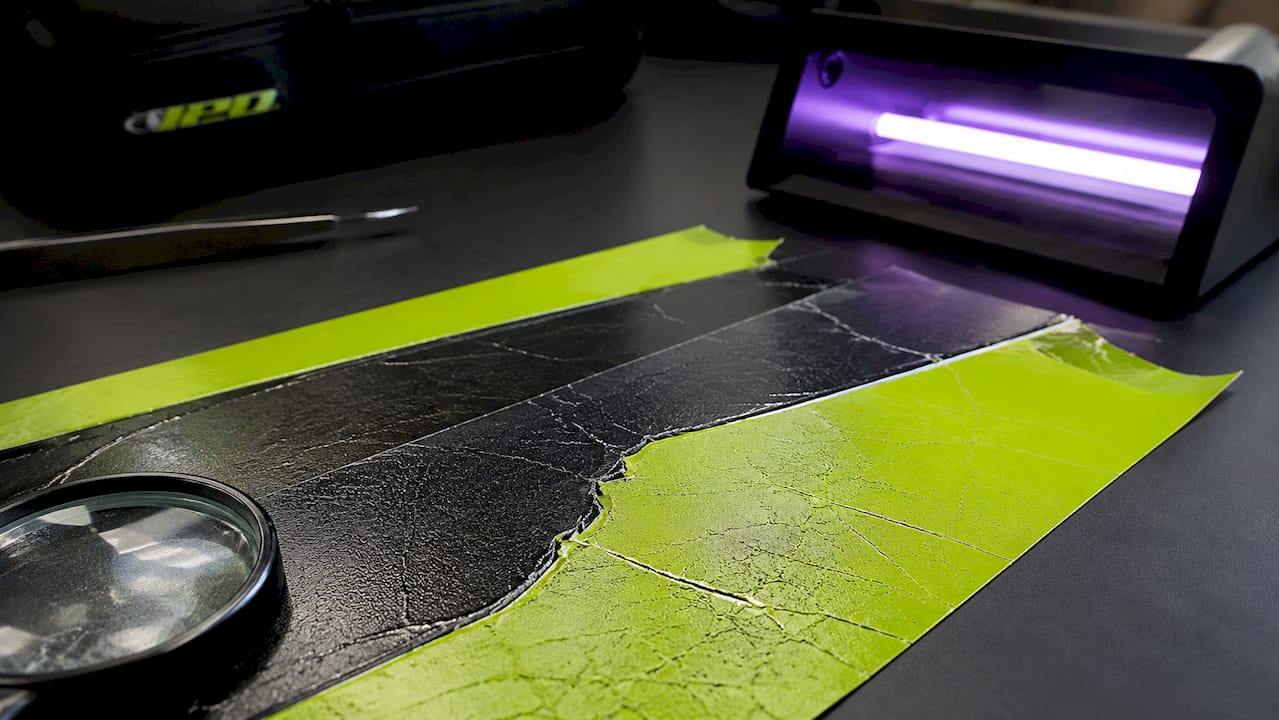

• Surface crazing: Micro-cracks form across the graphic surface as polymer chains break down, creating a web-like texture.
• Embrittlement: UV damage is structural, reducing the vinyl’s ability to flex without cracking, especially at edges and corners.
• Delamination: Once the vinyl weakens, adhesion to the hull surface fails, particularly at unsealed edges.

Pro Tip: If your graphics show uneven color before any cracking appears, UV photooxidation of organic pigments is already underway. Address it with a UV-protective overlaminate before physical damage sets in.

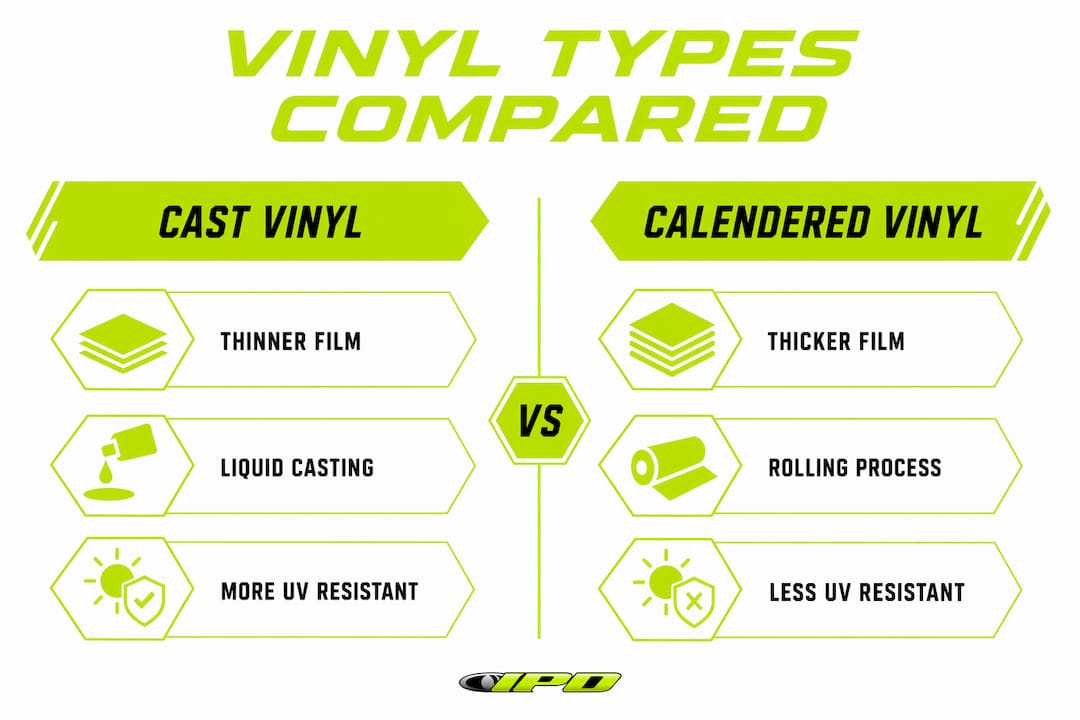

Cast vs. calendered vinyl: which holds up better against UV?

The type of vinyl film used in your graphics determines how long they survive UV exposure. Cast vinyl and calendered vinyl are the two main categories, and they perform very differently in marine conditions.

Cast vinyl is manufactured by spreading liquid PVC onto a casting sheet and curing it. This process produces a thinner, more conformable film with a tightly controlled molecular structure. High-quality cast vinyl films like Oracal 751C are rated for up to 8 years, though those ratings assume vertical surfaces and moderate climates. On a PWC facing direct sun, saltwater, and heat, real-world lifespan is shorter. Calendered vinyl is made by pressing warm PVC through rollers. It is thicker, less conformable, and has more internal stress built in. Under UV and heat, that stress releases, causing the film to shrink and lift.

Ink technology matters just as much as the film. UV-curable inks outperform solvent-based inks because the curing process creates a denser crosslink network that protects pigments against UV attack. Inorganic pigments resist the 280–400 nm UV spectrum better than organic colorants. When a print shop uses UV LED curing with inorganic pigment inks on a cast vinyl substrate, the result is a graphic that holds color significantly longer under marine conditions.

Ink film flexibility is another factor that gets overlooked. A PWC hull expands and contracts with temperature changes every single day on the water. Rigid ink films crack under thermal stress typical in marine environments. Flexible ink formulations designed for outdoor use accommodate that expansion and contraction, which is why the ink technology behind your graphics matters as much as the vinyl itself.

Pro Tip: When ordering custom graphics, ask specifically whether the shop uses cast vinyl and UV-curable inks with flexible formulations. Those two specs together are the baseline for marine-grade UV performance.

What environmental and usage factors speed up UV damage?

Not all PWC owners face the same UV risk. Coastal, southern exposures and repeated wet/dry cycles shorten graphic lifespan significantly compared to northern inland lakes with shorter seasons.

The factors that accelerate UV degradation the most include:

• Geographic climate zone: Riders in Florida, Texas, and Southern California face year-round high UV index conditions. A graphic that lasts six years in Minnesota may last three in Miami.
• Direct sun exposure: A PWC stored uncovered on a trailer in full sun accumulates UV damage even when it is not being ridden.
• Saltwater: Salt accelerates oxidation of both the vinyl and any exposed adhesive at graphic edges, compounding UV-driven breakdown.
• Thermal cycling: Daily heating and cooling of the hull stresses the ink film and vinyl adhesive. Over hundreds of cycles, this causes micro-cracking that UV penetrates more easily.
• Speed and water spray: High-speed riding creates abrasion from water droplets and wind that strips away the outermost protective layers, exposing the graphic to more direct UV.
• Wrap coverage: A full wrap protects the hull surface underneath and reduces the number of exposed edges. Partial wraps leave more vinyl borders exposed to UV and saltwater infiltration. You can compare the protection differences in detail by looking at full vs. partial wrap coverage.

Installation quality also plays a direct role. Edge sealing is critical because even premium UV-laminated vinyl fails prematurely when edges allow saltwater and UV to infiltrate underneath. A poorly sealed edge is the fastest path to delamination, regardless of how good the vinyl or ink is.

What steps can PWC owners take to protect graphics from UV damage?

Mitigating UV damage to graphics starts before you even hit the water. The right materials, applied correctly and maintained consistently, extend graphic life by years.

1. Choose UV-stable overlaminates. UV-stable overlaminates and protective coatings absorb UV stress and abrasion, increasing the service life of outdoor graphics. A gloss or matte laminate over the printed graphic adds a sacrificial UV-absorbing layer that takes the photochemical hit before the ink does.

2. Seal all edges at installation. Ask your installer to apply edge sealer at every border. This single step prevents saltwater and UV from working under the vinyl at its most vulnerable points. Inspect edges every season and reseal any areas showing lift.

3. Rinse after every saltwater session. Salt left on the graphic surface accelerates oxidation and works into any micro-cracks. A fresh water rinse after each ride removes the salt before it can do cumulative damage.

4. Store out of direct sun. A PWC cover or shaded storage location eliminates UV exposure during the hours the craft is not in use. Choose a cover that breathes rather than traps heat, since high temperatures accelerate thermal cycling damage even without direct sunlight.

5. Inspect graphics regularly. Check for early signs of crazing, edge lift, or color shift at least once per season. Catching UV damage early lets you address it with a protective overcoat or edge repair before full delamination sets in.

6. Opt for a full wrap when possible. Full wraps reduce the number of exposed edges and provide more consistent UV protection across the hull surface. For riders in high UV zones, the added coverage is worth the investment.

Pro Tip: Apply a marine-grade UV protectant spray over your graphics two to three times per season. Products designed for vinyl boat surfaces add a thin UV-absorbing layer that supplements the laminate and extends color life.

Key takeaways

UV radiation degrades PWC graphics through photochemical breakdown of vinyl polymers and organic pigments, making material selection, edge sealing, and UV-protective laminates the three most effective defenses against premature graphic failure.

What I have learned after years of watching PWC graphics age

The single most underestimated factor in PWC graphic longevity is edge sealing. Owners spend real money on premium cast vinyl and UV-curable inks, then skip the edge sealer at installation because it adds time and cost. Six months later, they are watching a corner peel back in a saltwater bay. The material was fine. The installation was not.

The second thing I have seen owners get wrong is expecting uniform fading. When a graphic starts showing color imbalance, with reds shifting while blues hold, the instinct is to assume the print was bad. It was not. That is differential pigment degradation doing exactly what UV photochemistry predicts. Organic pigments in cyan and magenta degrade faster than inorganic ones. If you know that going in, you set realistic expectations and plan for a refresh cycle rather than a warranty dispute.

My honest recommendation for anyone riding in Texas, Florida, or any coastal southern state: treat your graphics like you treat your hull. Rinse them, inspect them, and protect them proactively. The riders who get the most life out of their graphics are not the ones who bought the most expensive kit. They are the ones who sealed the edges, rinsed after saltwater, and stored the craft under cover. Those habits cost almost nothing and add years.

— Casey

Ipdjetskigraphics builds graphics that are made for the sun

Ipdjetskigraphics prints every graphics kit on premium cast vinyl with UV-resistant inks and a protective laminate designed specifically for the marine environment. Whether you ride a Sea-Doo, Yamaha WaveRunner, Kawasaki Jet Ski, or ProWatercraft, every kit is engineered to handle direct sun, saltwater, and thermal cycling. The UV-resistant rental graphics line is built for the highest-use, highest-exposure conditions in the industry. For riders who want a fully custom design with materials matched to their climate and usage, the custom graphics design process walks you through every material and ink choice. Ipdjetskigraphics ships worldwide from Texas and has been trusted by PWC owners for over two decades.

FAQ

How does UV radiation damage PWC vinyl graphics?

UV radiation breaks down vinyl polymer chains through a process called photochemical degradation, causing yellowing, surface crazing, and embrittlement. It also oxidizes organic pigments, producing uneven color fading before physical damage becomes visible.

How long do PWC graphics last with UV exposure?

High-quality cast vinyl films are rated for up to 8–12 years under ideal conditions, but marine use with intense sun, saltwater, and thermal cycling shortens that lifespan. Real-world durability depends heavily on climate zone, installation quality, and maintenance habits.

Does a UV laminate actually protect PWC graphics?

Yes. UV-stable overlaminates absorb UV stress and abrasion, adding a sacrificial layer that slows pigment and polymer degradation. They are one of the most effective tools for extending the service life of outdoor graphics.

Why do PWC graphics fade unevenly?

Organic pigments like magenta and cyan degrade faster than inorganic ones because they are more vulnerable to photooxidation in the 280–400 nm UV spectrum. This causes color imbalance before overall fade, which is a predictable result of differential pigment degradation rates.

Does edge sealing really make a difference on PWC graphics?

Edge sealing is critical for longevity. Even premium UV-laminated vinyl fails prematurely when unsealed edges allow saltwater and UV infiltration, leading to lifting and delamination that no amount of material quality can prevent.
